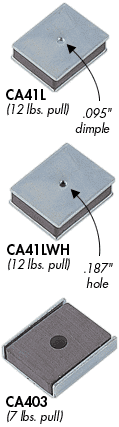

LATCH MAGNET ASSEMBLY


















A strong ceramic magnet is “sandwiched” between two zinc–plated steel pole pieces to form a powerful latch magnet assembly. Assembly held together magnetically.

Part No.
Pounds Pull
Overall Dimensions/Inches
Length
Width
Thickness
CA41L
12
1
.8125
.3125
CA41LWH
12
1
.8125
.3125

Price: $0.85/ea

Quantity:       Part No.:

LATCH MAGNET CHANNEL ASSEMBLY

A strong ceramic or rubber magnet is fixed into a zinc-plated steel channel to form a latch magnet assembly with holding power on one large surface. It features a center hole for mounting. Used mainly as a door latch, it's also great for holding key rings, nameplates, nozzles, fixtures or other ferrous metal objects.

Part No.
Pounds Pull
Overall Dimensions/Inches
Length
Width
Thickness
CA403
7
1
.875
.21875
RA403
5
1
.875
.21875
Plate for each above item has .1875" hole
CA403191
7
1
.875
.21875
Plate for above item has .12" hole

Price: $0.34/ea

Quantity:       Part No.:
LARGE CHANNEL MAGNET ASSEMBLY

Price: $5.00/ea.
Three powerful, rectangular ceramic magnets are fixed in a zinc–plated steel channel with mounting holes. Car dealerships use it as a license plate holder for test drives. This assembly also makes an excellent tool holder, sign holder and more (25 lbs. pull). Screws not included.

Quantity:

CUSTOM LATCH MAGNETS
For applications that go beyond our stock products listed above, we can create a custom built magnet to your specifications. To facilitate the process, fax a drawing with all critical dimensions: application height, width, thickness, desired magnet strength, location and diameter of any holes and any other important features.

For technical assistance call 1- 800-262-4638
