The DC Gauss meter is a very accurate instrument useful in measuring the DC magnetic field intensity of magnets, magnetic devices and assemblies, as well as relays, electromagnets, motors, generators, loudspeakers, actuators, ferrite content in non-ferrous materials and more!

Typical applications include magnet classification, analysis of magnetic circuitry and components, air shipment inspection, measurements of the earth's field vectors, mapping and recording field perturbations, Magnetic Resonance lmaging ( MRI ) and measuring residual fields.

Gaussmeter Specifications:

• Lightweight and portable
• Quickly measure DC Magnetic Field Intensity (Magnetic Flux Density) of any magnet
• Range: 20, 200, 2K, 20K gauss
• Bandwidth: 68 Hertz at 3 db
• includes high impact styrene carrying case
• Dimensions: 3" x 4" x 7" / weight 15 ozs
• Power consumption: 150 mW
• Analog output: +/- mV DC FS
• 3 1/2 digit bipolar display
• Powered by two 9 Volt batteries of AC adaptor ( both are included)
• 3% error guarantee
• Resolution: @ scale 20 G: 10mG

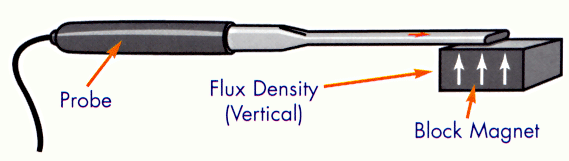

• Sensor probe: High linearity Hall Generator with 3 1/2 foot shielded cable
• 2 years parts & labor warranty

Part # GM-2
